General Purpose :

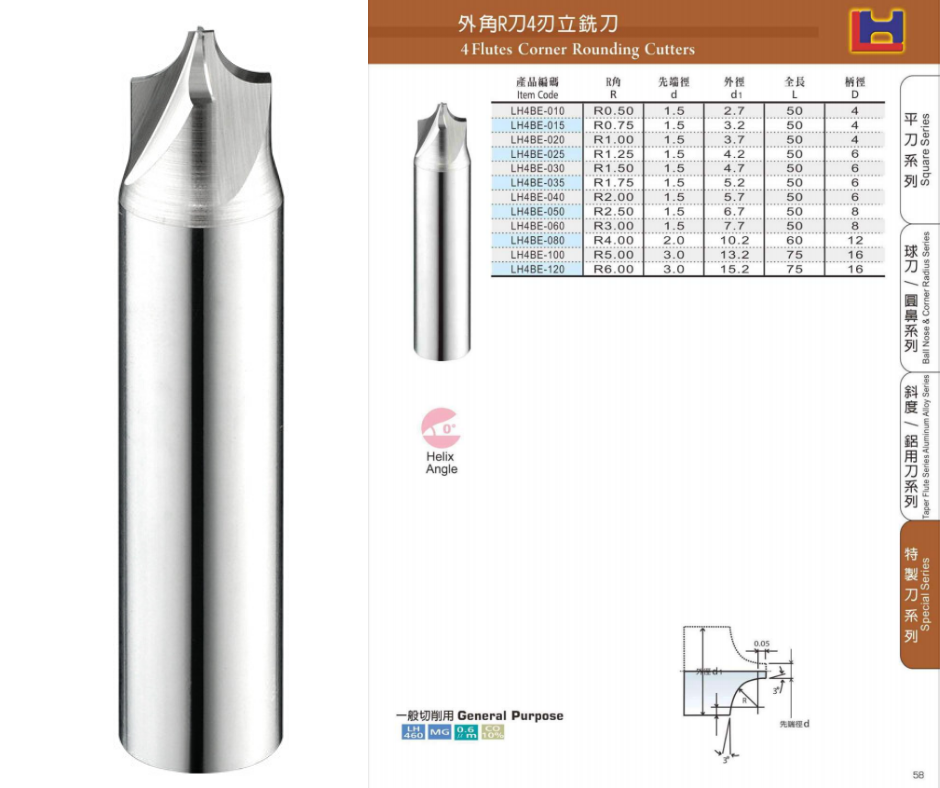

ltem code R Angle Taper First Diameter Outside Diameter Overall Length(l1) Shank Diameter(d2)
LH4BE-010 R0.50 1.5 2.7 50 4
LH4BE-015 R0.75 1.5 3.2 50 4
LH4BE-020 R1.00 1.5 3.7 50 4
LH4BE-025 R1.25 1.5 4.2 50 6
LH4BE-030 R1.50 1.5 4.7 50 6
LH4BE-035 R1.75 1.5 5.2 50 6
LH4BE-040 R2.00 1.5 5.7 50 6
LH4BE-050 R2.50 1.5 6.7 50 8
LH4BE-060 R3.00 1.5 7.7 50 8
LH4BE-080 R4.00 20 10.2 60 12
LH4BE-100 R5.00 3.0 13.2 75 16
LH4BE-120 R6.00 3.0 15.2 75 16
